ARA-3241 Series

ARA-3241 Series

  • Deployment Time: < 3 minutes
  • Black Anodized Finish
  • Folding Tripod with Azimuth and Elevation Adjustment
  • Two 12.5ft RF cables
  • Soft or Hard Case
  • Standard or Compact Size
  • Made in the USA

Description

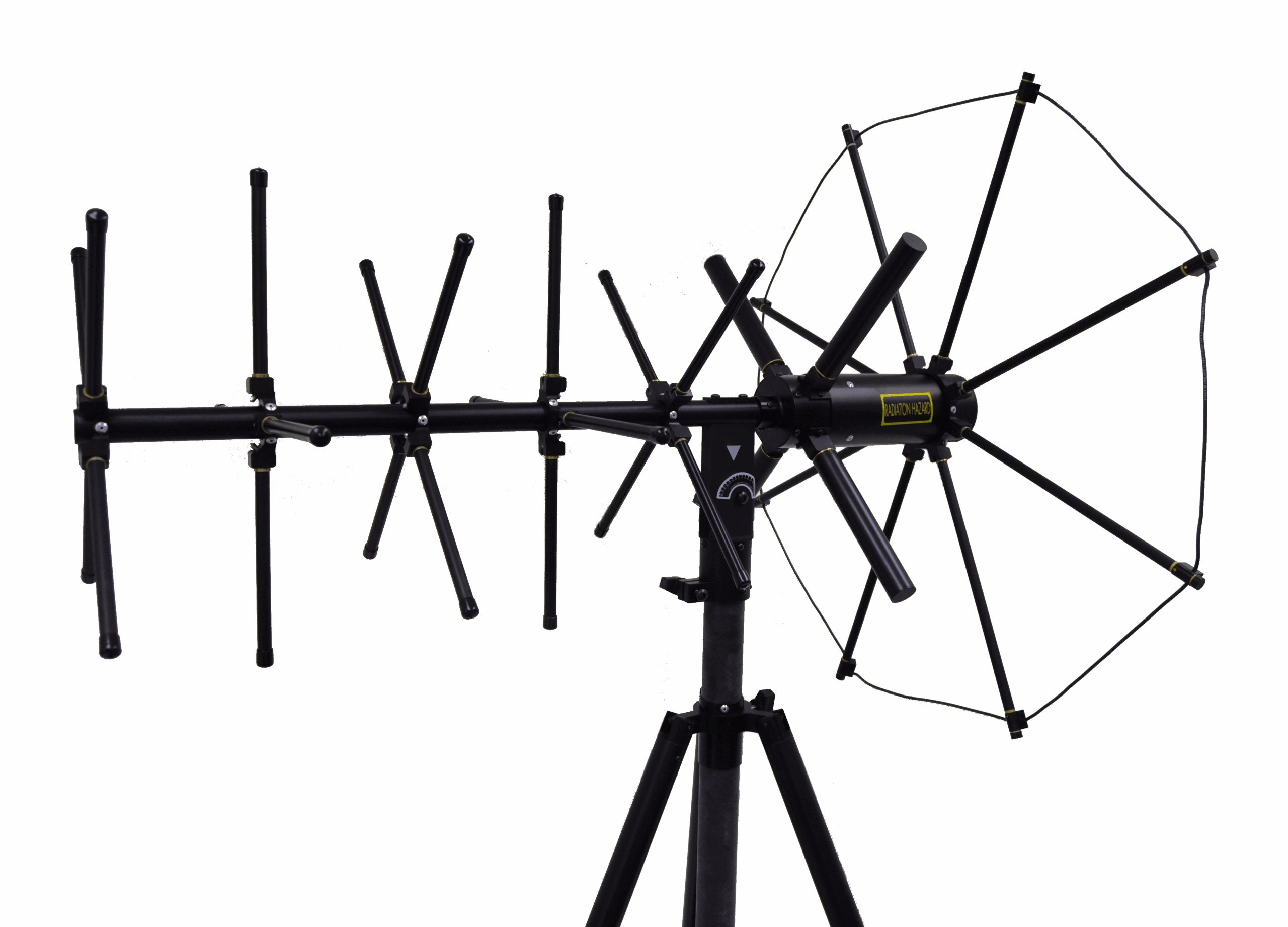

The ARA-3241 Series hosts extremely rugged and portable high-gain UHF SATCOM antennas that are available in full and compact sizes. These antennas are ideal for tactical command posts and temporary fixed site applications. The compact version is ideal for operation in high winds. The right-hand circular polarized (RHCP) antenna is designed to operate from 300 to 380 MHz at 200 Watts CW. These antennas are designed with exceptionally high gain, low VSWR, and rapid deployment. The antenna complies with MIL-STD-810G environmental standards for vibration, shock, temperature, loose cargo, and immersion.
